09CrCuSb seamless pipe successfully delivered (2020-8-8)


09CrCuSb seamless pipe successfully delivered (2020-8-8)

On August 7, 2020, our company successfully delivered ND steel (09CrCuSb) seamless steel pipes.

Customer's request: The customer hopes to complete the delivery within 25 days with guaranteed quality
Our solution: After receiving the order, immediately arrange the production of raw materials. The 09CrCuSb cold drawn seamless pipe will be produced within 18 days. Then, the inspection, painting, marking, packaging and other details of the seamless pipe will be completed within 3 days. Finally, it is loaded and sent to the port.

ND steel (09CrCuSb) seamless steel pipes are widely used in economizers, air preheaters, heat exchangers and evaporators in power plants and refineries in the production of high-sulfur flue gas to resist sulfur-containing flue gas condensation corrosion


Product: ND steel (09CrCuSb) seamless steel tube

Order details:
ND steel (09CrCuSb) seamless steel tubes
Standard: GB/T150.2——2011
Material: 09CrCuSb
Specification: 60.3 * 3.68 * 7070MM
Quantity: 2000 Pcs (72.3T)

Delivery:22 days
Package: Bundles (hexagonal)
Surface: Tubes will be varnished to prevent rust.
Marking: Standard + Steel Grade + Size + Heat No + Lot No


Testings items

Dimensional Inspection
Visual Examination
Microstructure
Flattening testing
Flaring test
Chemical analysis
Tensile test (longitudinal)
Corrosion resistance rate
Eddy currenting pectio(ET)
UT EN ISO 10893-10
Leak tightness test
PMI



Packing details








Testings details

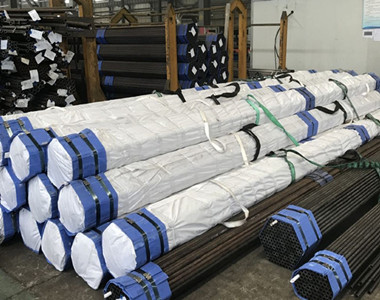

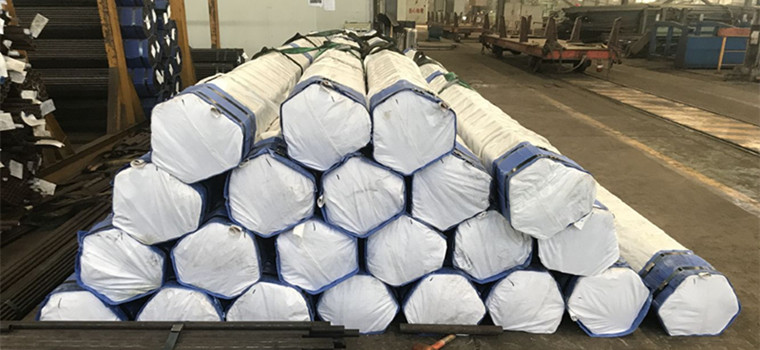

Photo of ND steel (09CrCuSb) seamless steel pipes after being packaged







09CrCuSb ND steel
09CrCuSb ND steel is a new type of steel resistant to sulfuric acid low temperature dew point corrosion developed by Shanghai Institute of materials and Xingcheng Special Steel from 1987 to 1990

Advantage of 09CrCuSb (ND steel)
ND steel is a low alloy structural steel. Compared with other steels such as low carbon steel, corten and cr1a, ND steel has excellent corrosion resistance and mechanical properties.

ND steel, 09CrCuSb steel, is the most ideal steel for “sulfuric acid resistant low temperature dew point corrosion” at home and abroad. ND steel is widely used in the manufacture of economizers, air preheaters, heat exchangers and in high sulfur flue gas. Equipment such as evaporators, used to resist corrosion of sulfur-containing flue gas dew point. ND steel also has the ability to resist chloride ion corrosion. The main reference index of ND steel pipe (soaked in 50% H2SO4 solution at 70 °C for 24 hours) is higher than that of carbon steel and stainless steel.


09CrCuSb (ND steel) steel is developed for coal-fired boilers, oil-fired boilers; heat exchangers for electric furnaces, pipes, chimneys, boiler air preheaters, economizers, heat exchangers, condensing coolers, evaporators, etc. Hot-rolled steel sheets and steel pipes with excellent resistance to sulfuric acid dew corrosion. Its superior resistance to sulfuric acid dew point corrosion and very high cost performance is the best material that can completely replace stainless steel and surpass stainless steel (in terms of sulfuric acid dew point corrosion resistance).
