JIS G3462 STBA23 Alloy boiler and heat exchanger tubes

Short Description:

JIS G3462 STBA23Alloy boiler and heat exchanger tubes Standard:JIS G3462 Alloy steel tubes for boiler and heat exchanger JIS G3462 specifies the alloy steel tubes (hereafter referred to as tubes) used for exchanging heat between the inside

Product Detail



JIS G3462 STBA23 Alloy boiler and heat exchanger tubes

Standard:JIS G3462
Alloy steel tubes for boiler and heat exchanger

JIS G3462 specifies the alloy steel tubes (hereafter referred to as "tubes") used for exchanging heat between the inside and outside of the tube, such as water tubes,smoke tubes, superheater tubes and air preheater tubes of boilers, and heat exchanger tubes, condenser tubes and catalyst tubes used in chemical and petroleum industries.


JIS G3462 STBA23 alloy steel tubes with an outside diameter of 15.9 mm. to 139.8 mm.



JIS G3462 STBA23 Alloy boiler and heat exchanger tubes Quick Details
Manufacture:Seamless; Cold finished ,Hot finished
Wall thickness(WT): 2.0 mm——12.7 mm.
Outer diameter (OD): 25 mm——139.8 mm
Length: 6M or specified length as required.
Ends: Plain End, Beveled End, Treaded


Additional Info
Port of Shipment: Tianjin, China
Payment Terms:T / T, LC
Delivery: 7-15 days after payment
Surface: Tubes will be varnished (Outside only) to prevent rust.
Marking: Standard + Steel Grade + Size + Heat No + Lot No
Package: Bundles (hexagonal),Wooden Boxes,Crates (steel/wooden) or as required



Manufacturing method
(1)The tubes of STBA23 are manufactured by seamless process.
(2) Plain end finishing are applied to the shape of tube end.


Heat treatment of JIS G3462 STBA23 Alloy boiler and heat exchanger tubes


Designation of grade Heat treatment a)
STBA23 Isothermal annealing, full annealing or normalizing followed by tempering b)


Notes : Low temperature annealing shall not be applied to the electric resistance welded steel tube.
The tempering temperature for JIS G3462 STBA22 Alloy steel tubes shall be 650°C or higher.


Chemical Composition of JIS G3462 STBA23

Standard:JIS G3462 Grade Chemical Composition Limits (%)
C Si Mn P S Cr Mo
STBA23 ≤ 0.15 0.50-1.00 0.30-0.60 ≤ 0.030 ≤ 0.030 1.00-1.50 0.45-0.65


Mechanical Properties of JIS G3462 STBA23

Designa
tion of
grade
Tensile strength a)
N/mm 2
Yield point or proof stress
N/mm 2
Elongation %
Outside diameter
Under 10 mm 10 mm or over to and excl. 20 mm 20 mm or over   All diameters
Tensile test piece
No. 11 test piece No. 11 test piece No. 11 test piece or No.12 test piece No.4 test piece No.14A test piece
Tensile test direction
Pararell to tube axis Pararell to tube axis Pararell to tube axis Pararell to tube axis Pararell to tube axis
STBA23 410 min. 205 min. 22 min. 25 min. 30 min. 24 min. 21 min.

NOTE: 1 N/mm 2 = 1 MPa



The dimensional tolerances of G3462 Alloy steel tubes for boiler and heat exchanger


Tolerances of  Wall Thickness

Tolerances Division of wall
thickness (mm)
Division of method of manufacture Hot finished seamless steel tube Cold finished seamless steel tube Electric resistance welded steel tube
Division of outside diameter (mm) Under 100 100 or over Under 40 40 or over Under 40 40 or over
Tolerances on wall thickness % Under 2 --- --- +0.4mm +22



0
+0.3 +18



0
0 0
2 or over to and excl. 2.4 +40 --- +20



0
+18



0
0
2.4 or over to or excl. 3.8 +35 +35
0 0
3.8 or over to or excl. 4.6 +33 +33
0 0
4.6 or over +28 +28
0 0
Tolerances  on
thickness disparity
%
--- Within 22.8 of wall thickness --- ---


Tolerances of  Outside Diameter

Division of outside diameter Tolerances on outside diamete
 Hot finished seamless steel tube Cold finished seamless steel tube Electric resistance welded steel tube other than cold finished Cold  finished  electric resistance welded steel tube
Under 25 +0.4

-0.8
【0.10 【1.5 【0.10
25 or over to and excl. 40 【0.15 【0.20 【0.15
40or over to and excl. 50 【0.20 【0.25 【0.20
50 or over to and excl 60 【0.25 【0.30 【0.25
60 or over to and excl. 80 【0.30 【0.40 【0.30
80 or over to and excl. 100 【0.40 +0.40 【0.40
-0.60
100 or over to and excl.12 +0.4

-1.2
+0.40
-0.60
+0.40
-0.80
+0.40
-0.60
120 or over to and excl.160 +0.40
-0.80
+0.40
-1.00
+0.40
-0.80
160 or over to and excl.200 +0.4 +0.40 +0.40 +0.40
-1.8 -1.20 -1.20 -1.20
200 or over +0.4 +0.40 +0.40 +0.40
-2.4 -1.60 -1.60 -1.60


Tolerances of Length

Division Tolerance on length
50 mm or under in
outside diameter
7 m or under in length +0.7 mm
0
Over 7 m in length Add 3 mm to the plus side permissible deviation given above for each increase of 3m or its fraction in length. However, the maximum value shall be 15 mm.
Over  50  mm  in
outside diameter
7 m or under in length +10mm
0
Over 7 m in length Add 3 mm to the plus side permissible deviation given above for each increase of 3m or its fraction in length. However, the maximum value shall be 15mm.




Appearance
a) The tube are practically straight, and the both ends shall be practically perpendicular to the tube axis.
b) The inside and outside surfaces of the tube are finished well without defects detrimental to use. In the case of electric resistance welded steel tube, the swelling of inside surface of the weld shall be 0.25 mm or under. The purchaser may specify the inside swelling to be 0.15 mm or less for tubes of 50.8 mm or under in outside diameter and 3.5 mm or under in wall thickness.
c) The surface of the tube may be repaired by grinding, machining or other methods,provided that the wall thickness after repairing still satisfies the specified tolerance on thickness.
d) The surface of repaired part shall be smooth along the contour of the tube.



Testings
(1)Chemical analysis
(2)Mechanical test
(3)Tensile test
(4) Flattening test
(5) Flaring test
(6)Reverse flattening test
(7)Hydraulic test or nondestructive test




Marking
The tubes which have passed the inspection shall be marked with the following items on each tube. However, the order of arranging the items is not specified.
Further, in the case of either smaller tubes or a request from the purchaser, the tubes may be bundled together and marked by a suitable method on each bundle.
Moreover, when approved by the purchaser, part of items may be omitted.
(1) Symbol of class(STBA23 )
(2) Symbol representing the method of manufacture (³)
(3) Dimensions
(4) Manufacturer's name or its abbreviation
(5) Symbol representing the designation of special quality requirements: Z
Note ( 2 )
Symbols representing the methods of manufacture shall be as follows:
However, the sign - may be replaced by a blank.
Hot finished seamless steel tube - S - H
Cold finished seamless steel tube - S -C
Electric resistance welded steel tube other than hot finished and cold finished - E - G
Hot finished electric resistance welded steel tube - E - H
Cold finished electric resistance welded steel tube - E - C


Test report
We will submit an inspection document to the purchaser

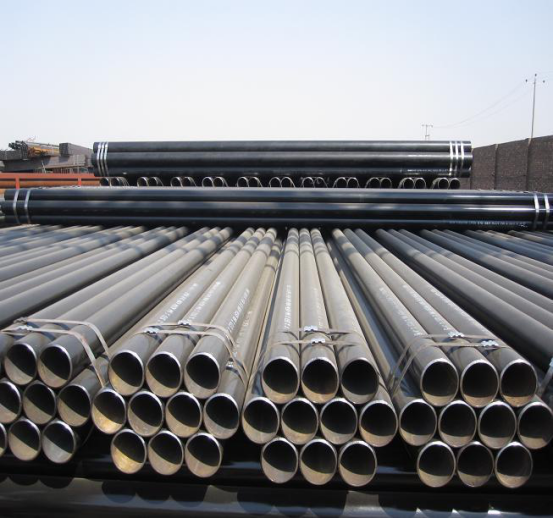

Photos of JIS G3462 STBA23 Alloy boiler and heat exchanger tubes
